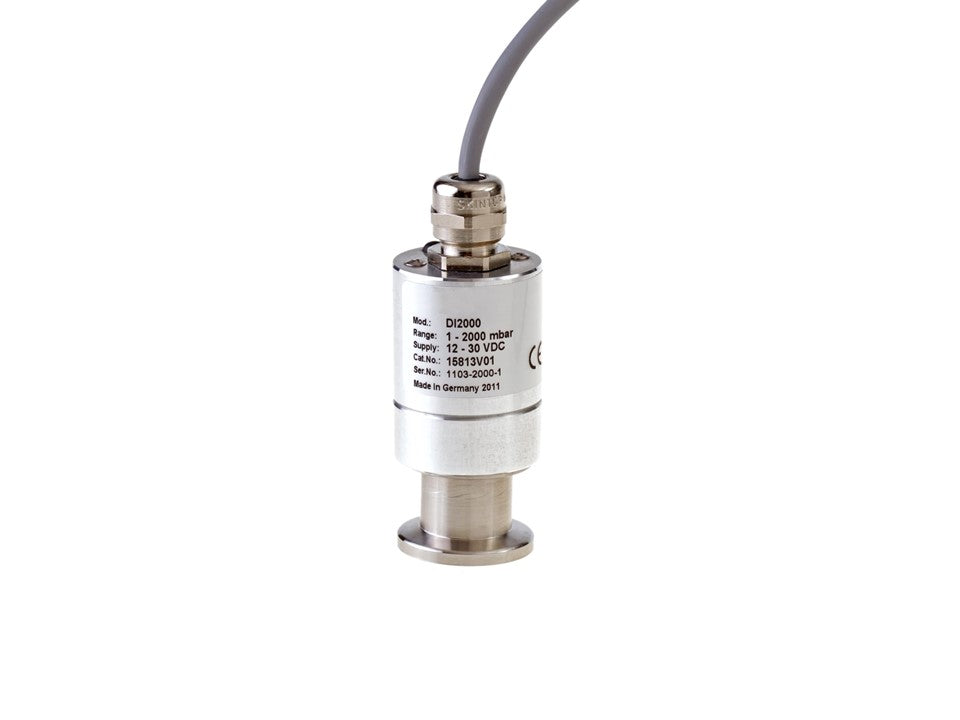

Leybold DI Sensors DI 2000
Leybold DI Sensors DI 2000
Couldn't load pickup availability
Do you have questions?
Do you have questions?
- Did you find a better price?
- Questions about delivery?
- Adaptation for your process as needed?
- Description
- Documents
- Necessary accessories
- Optional accessories
- Oils / Operating materials
- Spare Parts
- Service
DI Sensors – Precise Piezo or Capacitive Pressure Sensors in Ceramic Technology
DI sensors are versatile, high-precision pressure sensors built in piezo or capacitive technology with a robust ceramic membrane. These sensors deliver excellent performance for absolute and relative pressure measurements, ideal for demanding applications.
- Measurement Ranges: Absolute pressure from 0.1 to 200 mbar or 1 to 2000 mbar; relative pressure range from -1000 to +1000 mbar.
- Overload Protection: AI₂O₃ ceramic membrane provides exceptional overload behavior and high corrosion resistance.
- Gas-Independent: Stable measurements regardless of gas composition.
- Vibration Resistant: Reliable performance even under vibrations.
- Connection Options: Available in two-wire technology (DI) or four-wire technology (DU).
- Supply Voltage: 12 to 30 V DC (DI) and 14.5 to 30 V DC (DU).
- Output Signal: Linear 4 to 20 mA signal (DI); linear 2 to 10 V signal (DU).
- Robust Design: Compact form with stainless steel housing (IP54 for DI/DU 200 and 201) or aluminum housing (IP54 for DI/DU 2000 and 2001).
- Connection: DN 16 ISO-KF with G 1/4" female thread.
Typical Applications: Absolute and relative pressure measurement in industrial applications requiring high precision and robustness.
