Leybold
Leybold Digital THERMOVAC Vacuum Gauge TM 101
Leybold Digital THERMOVAC Vacuum Gauge TM 101
Couldn't load pickup availability
Do you have questions?
Do you have questions?
- Did you find a better price?
- Questions about delivery?
- Adaptation for your process as needed?
- Description
- Documents
- Necessary accessories
- Optional accessories
- Oils / Operating materials
- Spare Parts
- Service

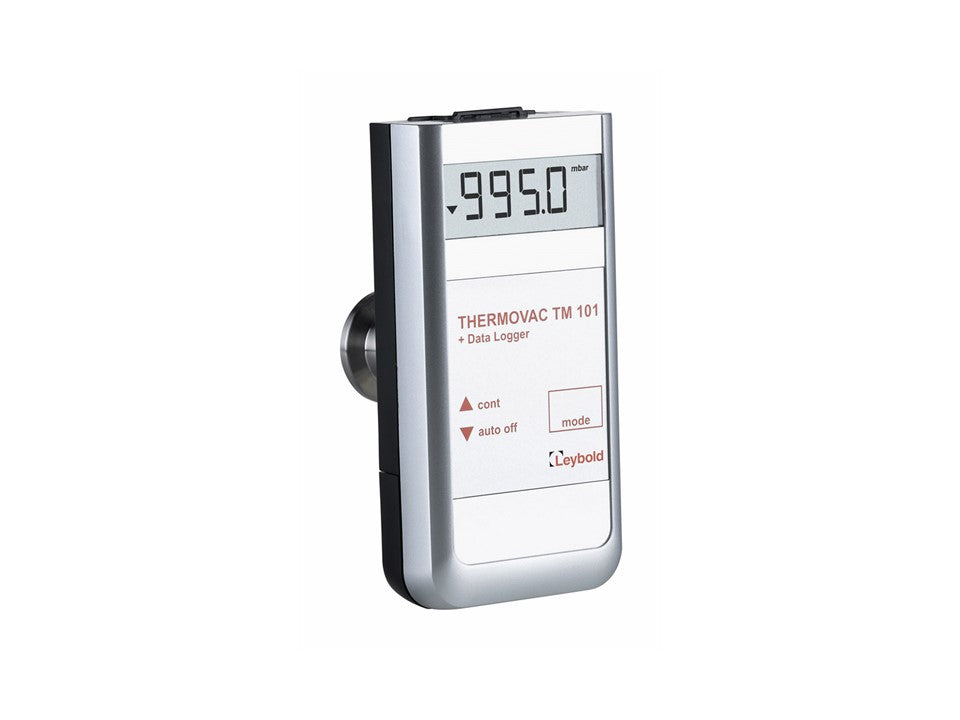

Digital THERMOVAC Vacuum Gauge TM 101 – Precise Pressure Measurement and Data Logging in a Compact Design
The THERMOVAC TM 101 is a compact digital vacuum gauge that combines high-quality sensors with advanced processing technology. It provides accurate pressure measurements from 1200 to 5 · 10⁻⁴ mbar and features an optional data logger for easy data transfer via USB.
- Measurement Range: 1200 to 5 · 10⁻⁴ mbar (7 decades).
- Dual-Sensor Technology: Piezoresistive sensor for higher pressures and Pirani sensor for lower pressures.
- Gas-Independent Display: Measurements above 15 mbar are independent of gas type.
- Flexible Settings: Selectable pressure units in mbar, Torr, or Pascal; adjustable gas correction factor.
- Data Logging: Internal memory for up to 2000 measurements, with USB interface for PC transfer.
- User-Friendly Display: Large 4-digit, 7-segment display for easy reading.
- Battery-Powered: Wireless power supply with standard 9 V battery.
- Export and Analysis: ASCII text format for data export and analysis, e.g., in Microsoft Excel.
- Protection Class: IP 40 for added durability.
Typical Applications: Mobile pressure measurements, quality and operational assurance of vacuum pumps, maintenance and service, graphical pump-down curves, pressure measurements in evaporators and vacuum ovens, chemical processing, refrigeration systems, leak tests.
