    4. Leybold RUTA RA 3001 / SV 630 BF / G
    Skip to product information
    1 / of 3

    Leybold

    Leybold RUTA RA 3001 / SV 630 BF / G

    Leybold RUTA RA 3001 / SV 630 BF / G

    Do you have questions?

    • Did you find a better price?
    • Questions about delivery?
    • Adaptation for your process as needed?

    Feel free to contact us!

    View full details
    Leybold RUTA RA 3001 / SV 630 BF / G Leybold RUTA RA 3001 / SV 630 BF / G Leybold RUTA RA 3001 / SV 630 BF / G
    • Description
    • Documents
    • Necessary accessories
    • Optional accessories
    • Oils / Operating materials
    • Spare Parts
    • Service

    RUTA System – Customized Vacuum Systems with SOGEVAC 2-Stage Frame Versions

    Since 1850, the RUTA System has provided reliable solutions for diverse vacuum technology requirements. With professional consultation and tailored designs, we meet the highest standards for our customers.

    • Customized Forevacuum Systems: Adapted to individual process needs.
    • Technology Options: Oil-sealed or dry-compressing systems.
    • Optimized Pumping Speed: Process-specific capacity and ultimate pressures.
    • High Vacuum Stages: Additional options for working pressures up to 10⁻⁷ mbar.
    • Reliable Technical Solutions: Decades of experience in designing robust systems.
    • Tailored Consultation: Professional support for the design and delivery of optimized vacuum systems.

    Typical Applications: Industrial processes, research and development, coating systems, and any application requiring precise vacuum technology.

    • Leybold Vakuum Pumpsysteme Katalog - DE
    Invalid password
    Enter

    Legal

    • AGBs
    • Imprint
    • Data Protection
    • Contact
    © 2025, Druschke GmbH Vakuumservice Powered by Shopify
    • Choosing a selection results in a full page refresh.
    • Opens in a new window.
    Product details:
    Article number
    502455V001
    Power supply
    3‐ph, 400 V, 50 Hz
    End pressure
    < 4.00 x 10⁻² mbar
    End pressure

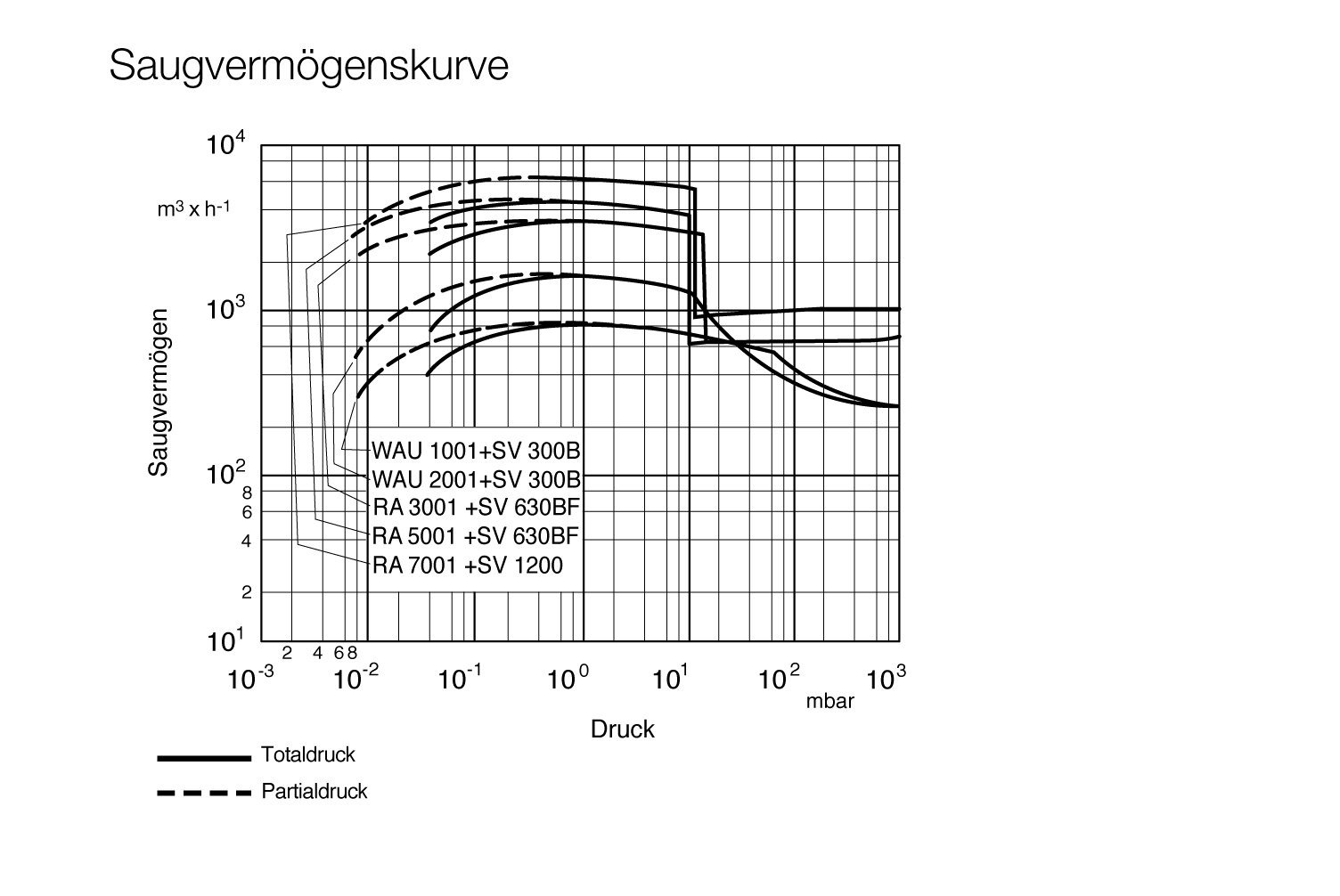

    Pumping speed
    3,090.00 m³/h
    Pumping speed
    Inlet flange / Outlet flange
    Operating fluid
    N 62
    Consisting of
