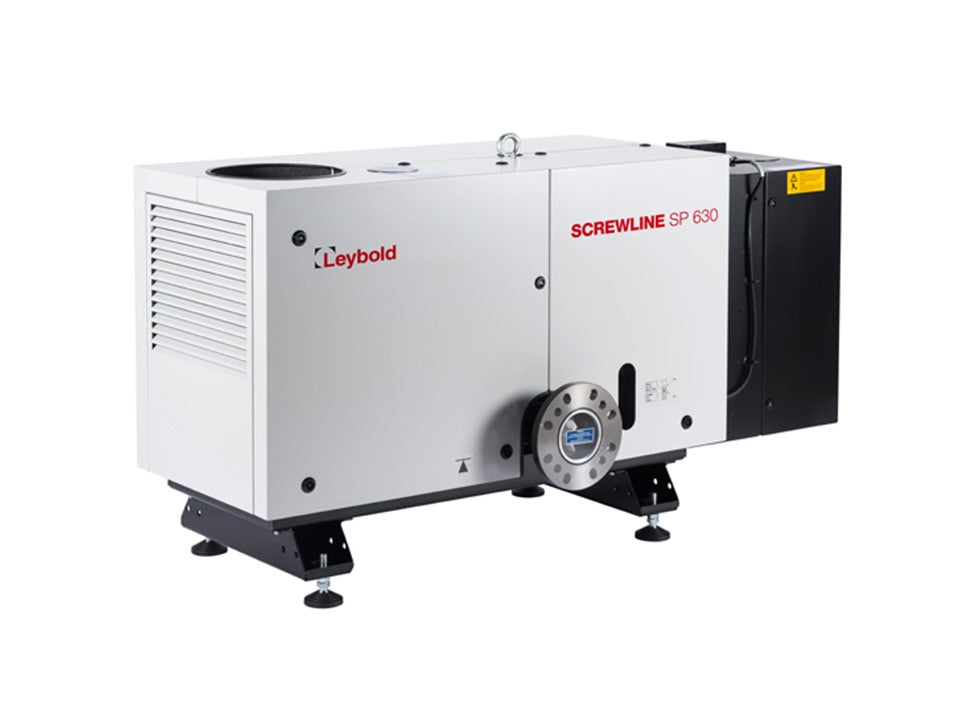

SCREWLINE SP 630 – Reliable, Low-Maintenance Screw Vacuum Pump
The SCREWLINE SP 630 is designed for industrial applications, offering a compact and reliable solution with innovative features for diverse use cases.
- Operating Principle: Dry-compressing screw vacuum pump with low-pulsation gas flow thanks to counter-rotating rotors.

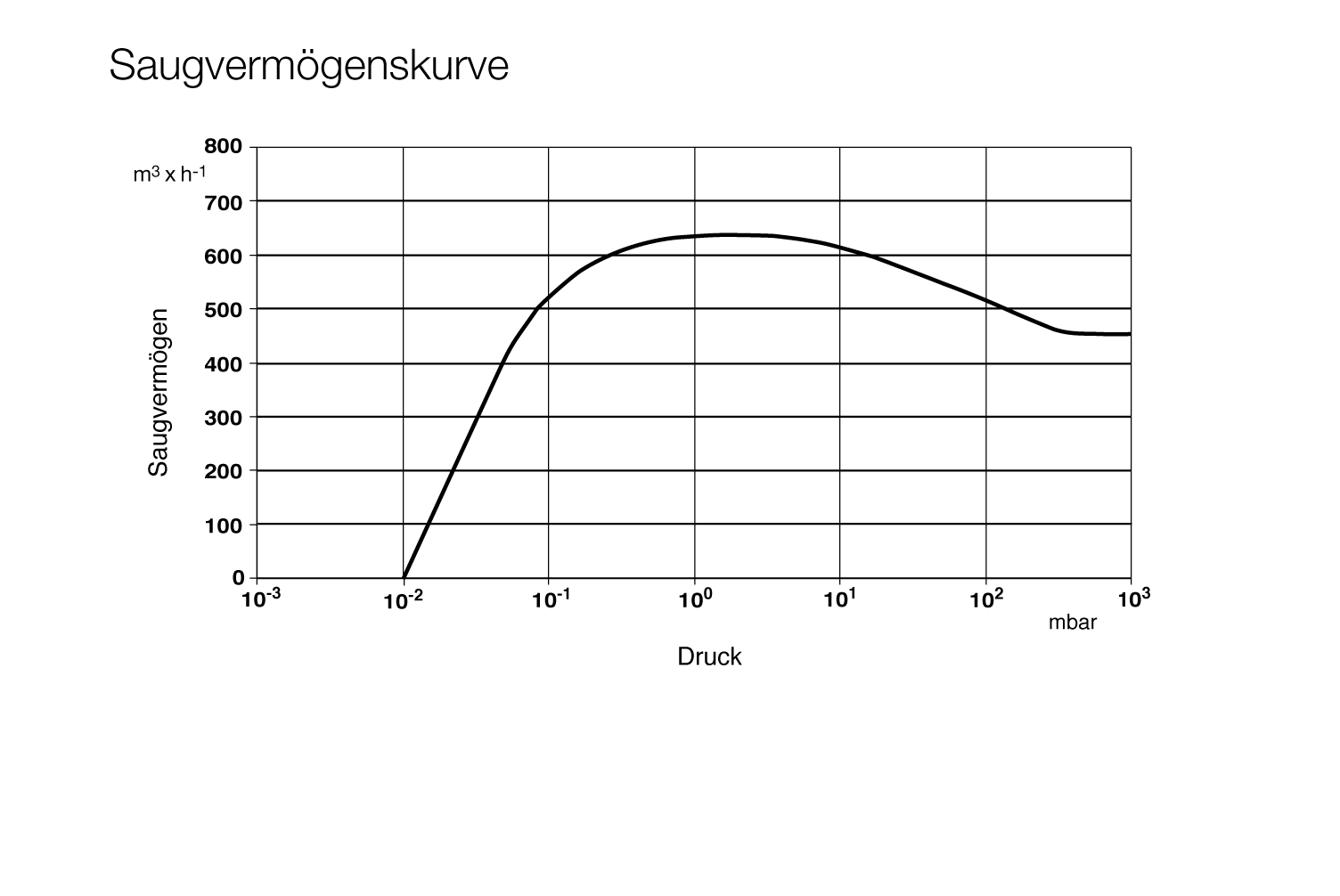

- Pumping Speed: 630 m³/h, ideal for high-throughput processes.
- Ultimate Pressure: Up to 1 × 10⁻² mbar, suitable for demanding applications.
- Cool Exhaust Temperature: Max. 100 °C internally, prevents deposits and extends pump life.
- Long Maintenance Intervals: Wear-free shaft seals, gear oil change every two years.
- Integrated Oil Cooling: Air-cooled, water-cooled variants (SP 630 F) available.
- Easy Maintenance: Simple on-site cleaning of the pumping chamber without complex disassembly.
- Accessories: Purge kits, sound enclosures, and universal flanges for seamless process integration.
Typical Applications: Industrial furnaces, coating technology, drying processes, food industry, degassing, packaging technology, space simulation, research, and development.
