Leybold

Leybold SOGEVAC SV 16 B

Artikelnummer: 960165 960175 960160 960170
engine
Produkt anfragen

Best Price Guarantee

Found a better price?

Feel free to contact us!

delivery information

plus delivery costs - you determine the shipping option yourself.

Individual as your requirement

Depending on your needs, we adapt your product to your requirements. Ask us, we would be happy to advise you!



SOGEVAC SV 16 B

our solution

- Compact design due to integrated motor

- Various three-phase motors and AC motors available

Technical specifications

SOGEVAC SV 16 B

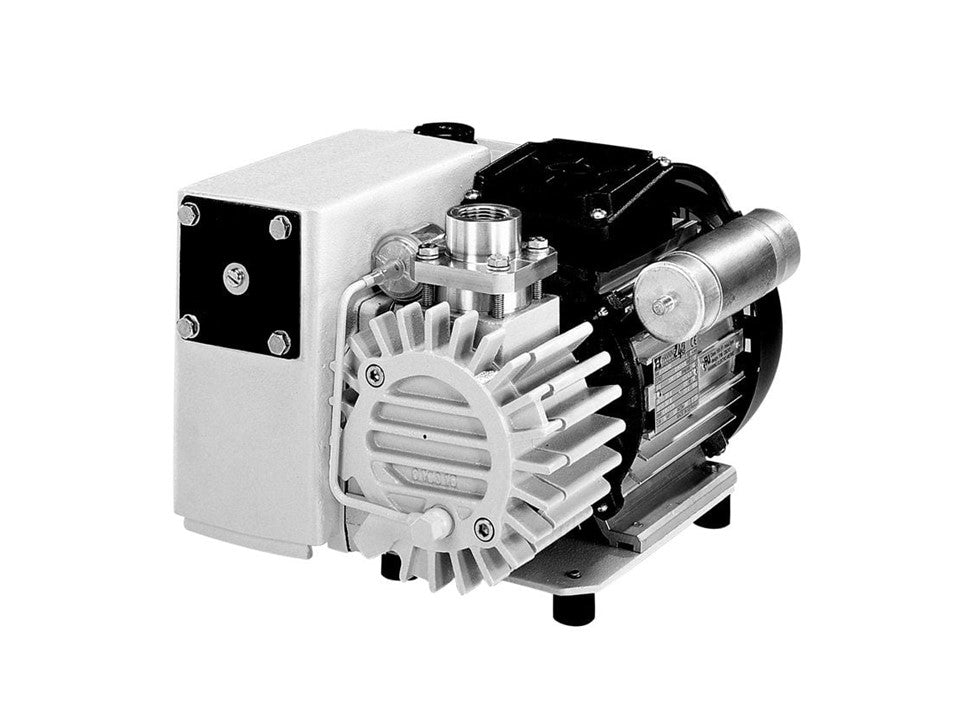

SOGEVAC rotary vane pump with AC motor or three-phase motor and permanent gas ballast

Resources: LEYBONOL LVO 120
final pressure: 1 mbar

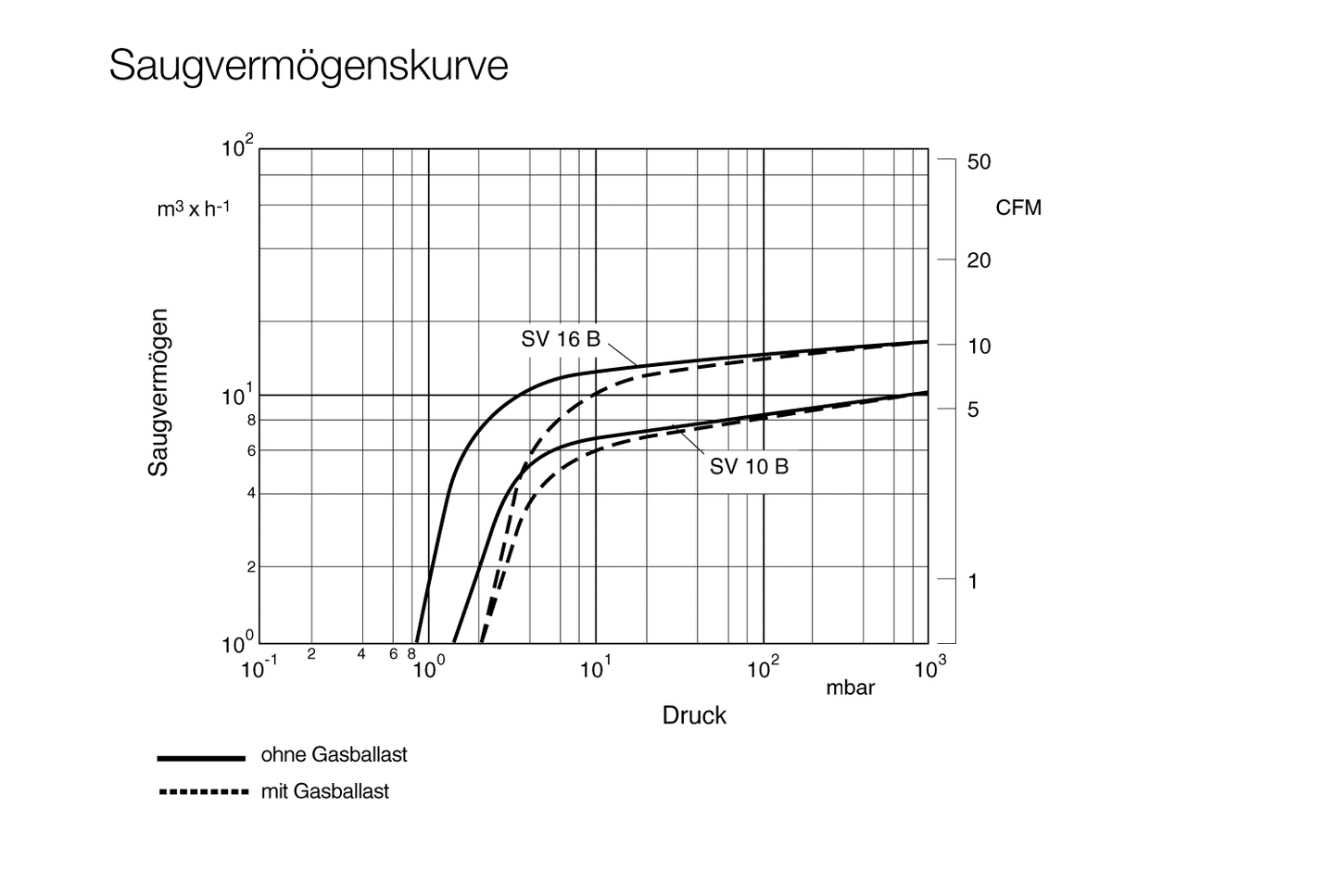

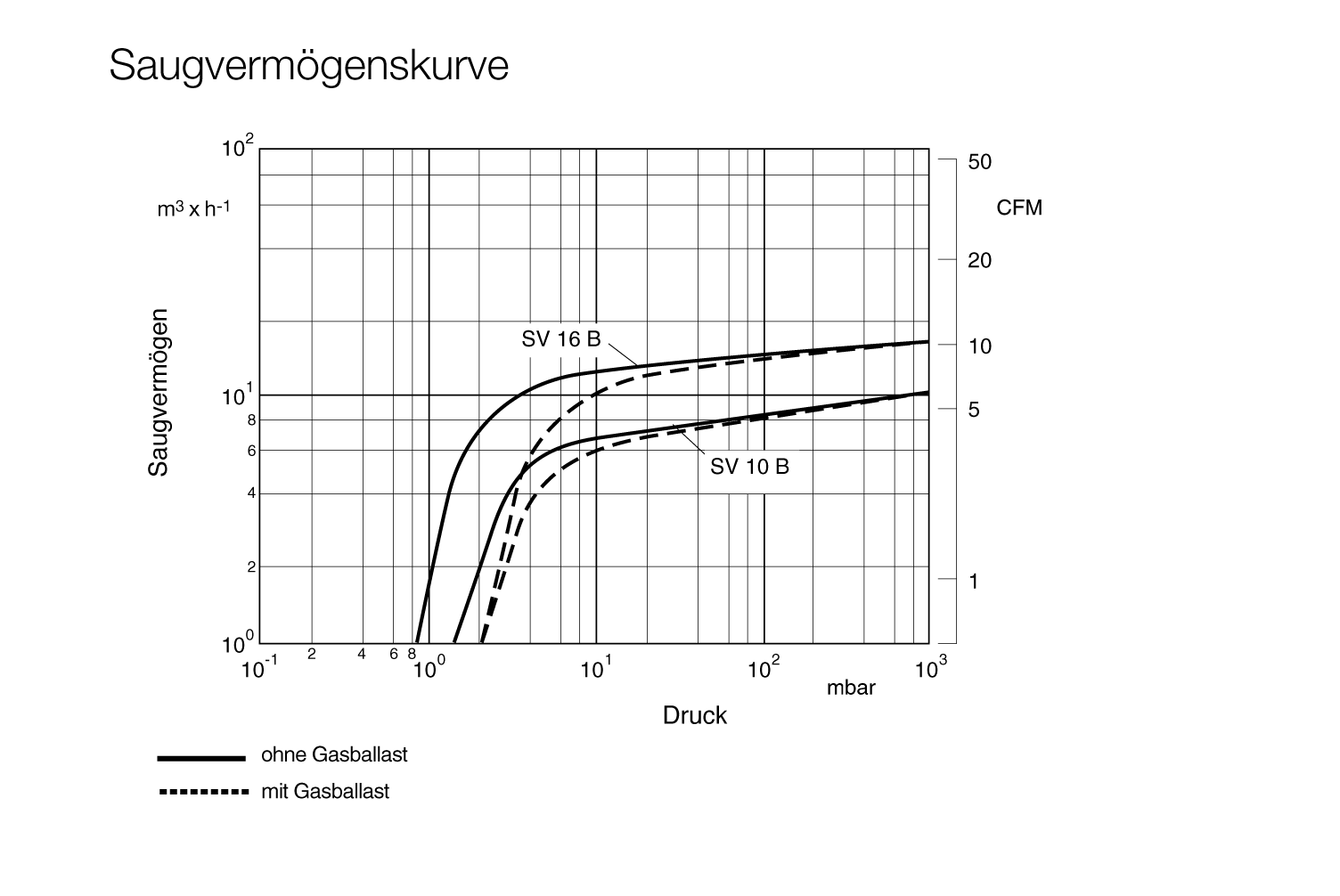

Pumping speed (50 Hz): 15 m³/h
Pumping speed (60 Hz): 17 m³/h


    Downloads

    Download Brochure
