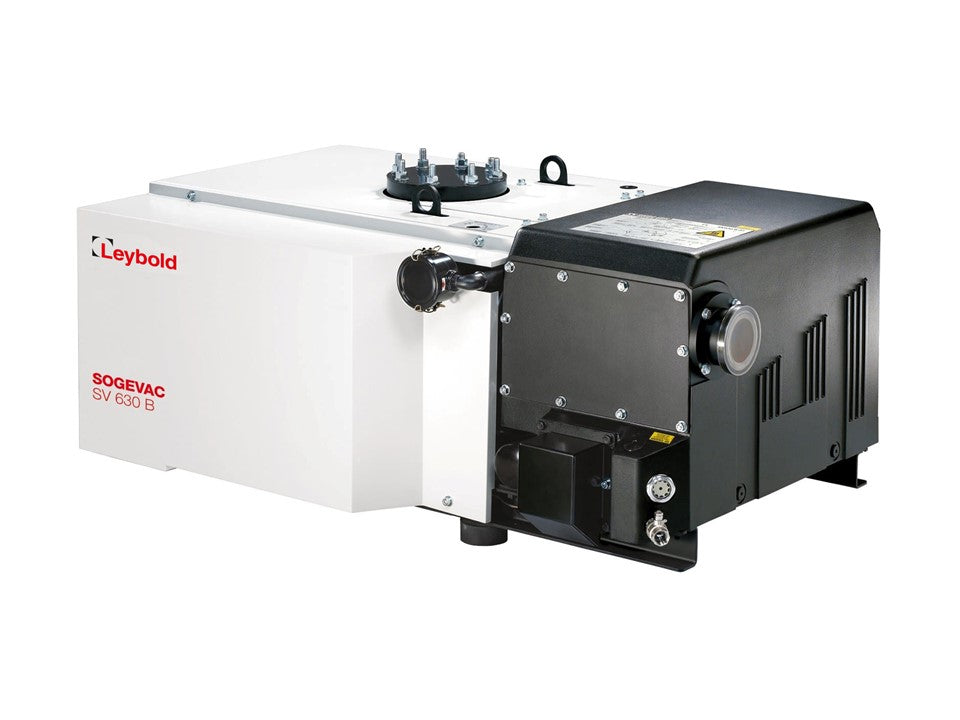

    Leybold SOGEVAC SV630BF

    Leybold SOGEVAC SV630BF

    Do you have questions?

    • Did you find a better price?
    • Questions about delivery?
    • Adaptation for your process as needed?

    Feel free to contact us!

    View full details
    Leybold SOGEVAC SV630BF Leybold SOGEVAC SV630BF Leybold SOGEVAC SV630BF
    • Description
    • Documents
    • Necessary accessories
    • Optional accessories
    • Oils / Operating materials
    • Spare Parts
    • Service

    SOGEVAC B – Single-Stage Oil-Sealed Rotary Vane Vacuum Pumps

    The SOGEVAC B series from Leybold offers reliable and efficient vacuum solutions with advanced technology. Perfect for industrial applications, it combines proven functionality with enhanced features.

    • Compact Design: Space-saving, robust, and durable.
    • Low Noise: Quiet operation across the entire pressure range.
    • Integrated Functions: No external piping required, ensuring efficiency.
    • Custom Variants: Flexible design tailored to various requirements.
    • ATEX Options: Available in Category 2 and 3, from SV40 B to SV100 B.
    • Easy Maintenance: Simplified servicing and long lifespan.
    • Outstanding Performance: Low ultimate pressure, high pumping speed, and excellent water vapor tolerance.

    Typical Applications: Industrial processes, research and development, drying and packaging technology, chemical and pharmaceutical industries.

    Invalid password
    Enter

    Legal

    • AGBs
    • Imprint
    • Data Protection
    • Contact
    © 2025, Druschke GmbH Vakuumservice Powered by Shopify
    • Choosing a selection results in a full page refresh.
    • Opens in a new window.
    Variant:
    Article number
    960869
    960867
    Product
    End pressure
    8.00 × 10⁻² mbar8.00 × 10⁻² mbar
    End pressure

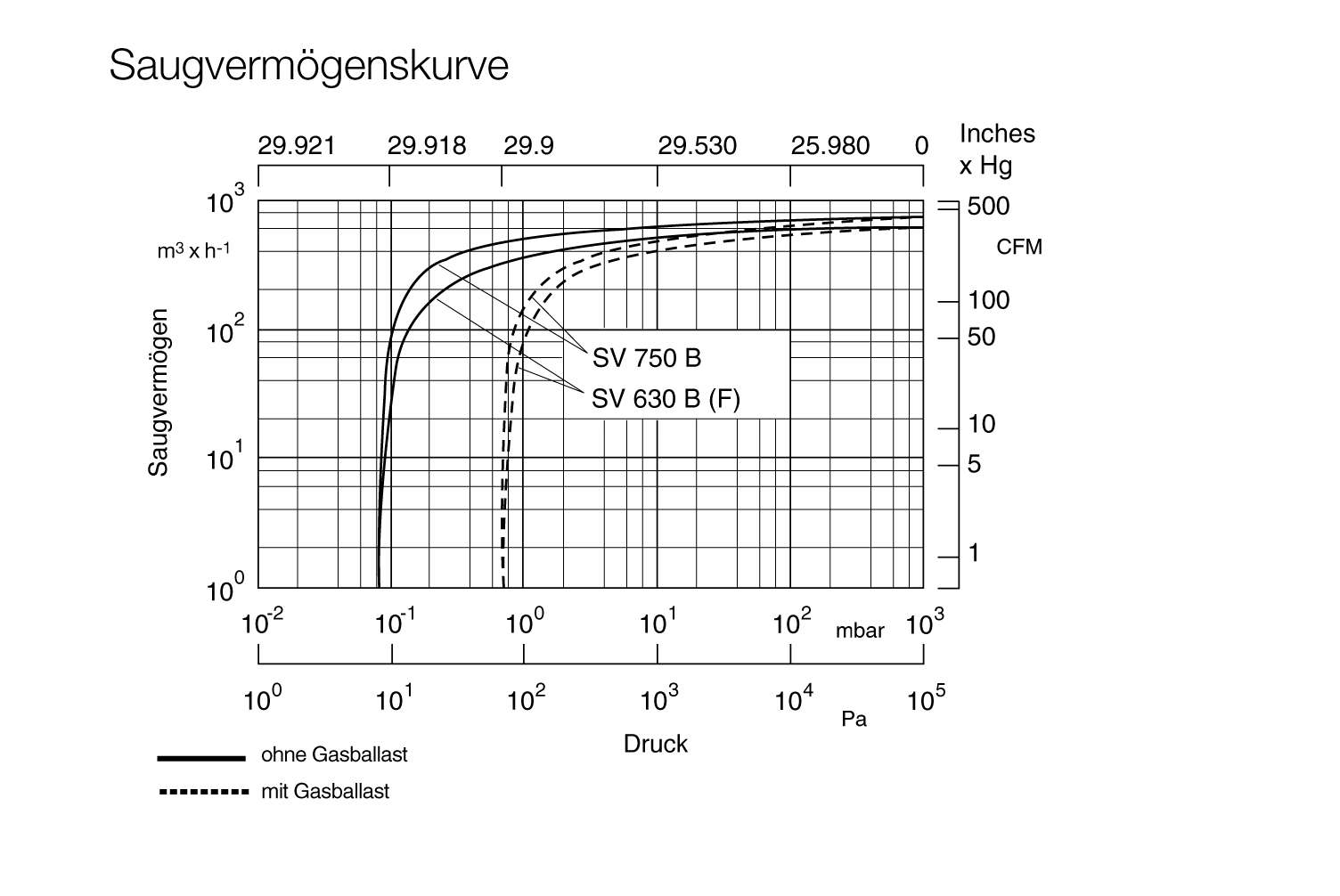

    Pumping speed
    640.00 m³/h640.00 m³/h
    Pumping speed
    Connection flange
    Power supply
    3-ph, 230/460V, 60Hz / 400V, 50Hz3-ph, 400/690V, 50Hz / 460V, 60Hz
    Feature variant
    Connection flange (pressure side)
    Connection flange (suction side)
    Inlet flange
    Outlet flange
    Lubricants
    Valves
    Product details
    Cooling Method
