Leybold
Leybold THERMOVAC TTR 101
Leybold THERMOVAC TTR 101
Couldn't load pickup availability
Do you have questions?
Do you have questions?
- Did you find a better price?
- Questions about delivery?
- Adaptation for your process as needed?
- Description
- Documents
- Necessary accessories
- Optional accessories
- Oils / Operating materials
- Spare Parts
- Service

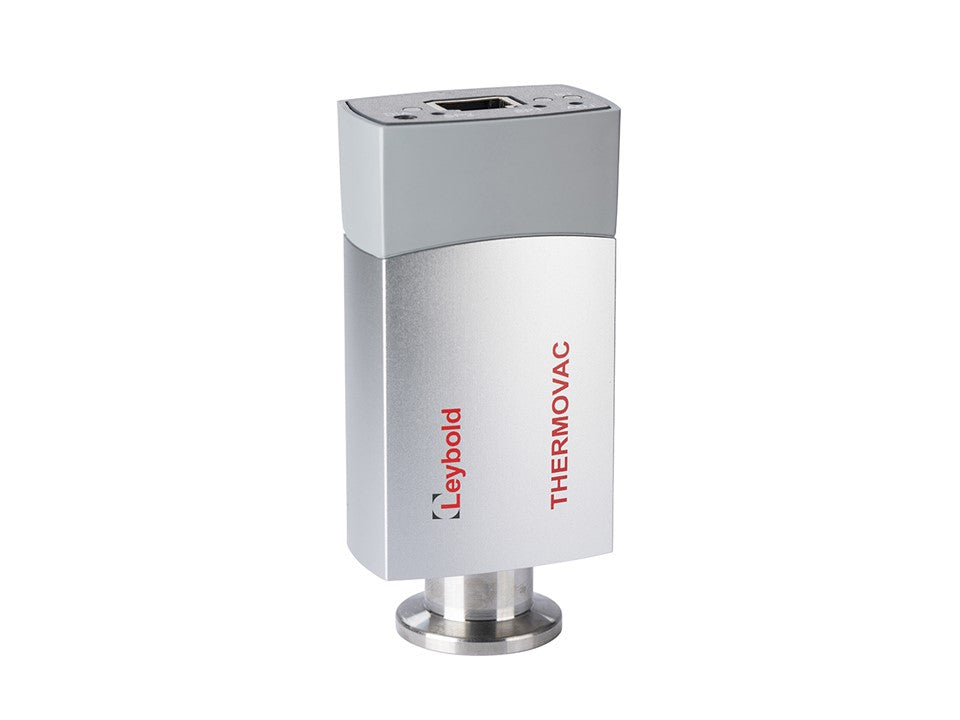

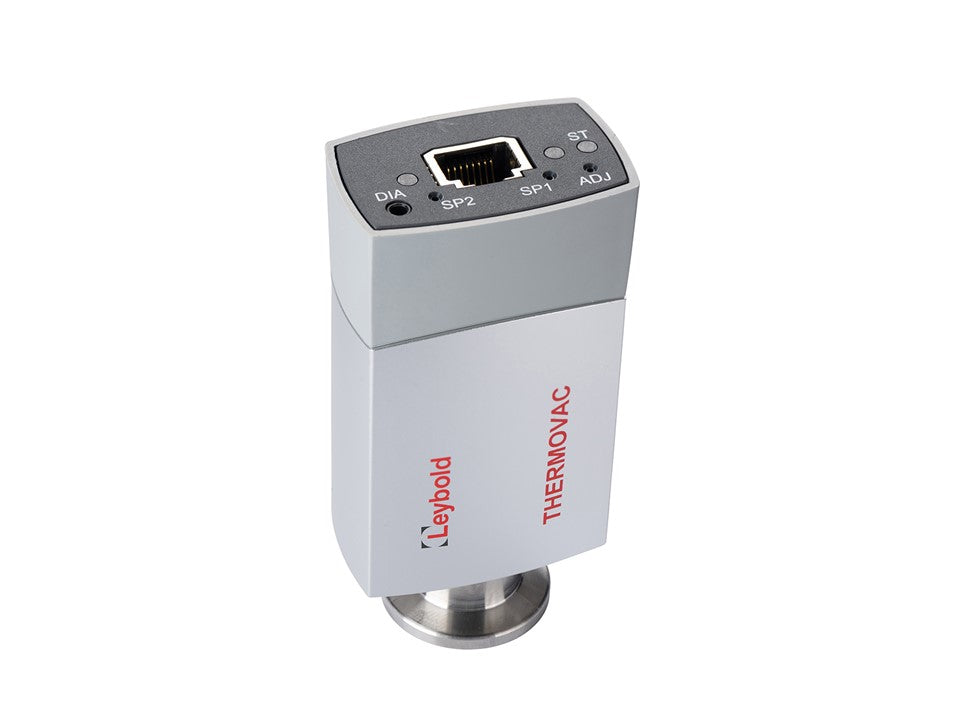

THERMOVAC-Transmitter TTR 101
The Pirani capacitance vacuum sensor is the first vacuum sensor in which the principle of capacitance measurement via a ceramic membrane is combined with the principle of pressure measurement via thermal conductivity. The Leybold Transmitter TTR 101 offers superior accuracy and the possibility of gas type-dependent measurements in the back range between 10 mbar and 1500 mbar.
Benefits for the user
- Large display range from 5 · 10e-5 to 1500 mbar
- Gas independent over 10 - 1500 mbar
- Available with optional display or with up to 2 integrated setpoint settings
- Easily replaceable, immediately ready-to-use sensor element, with calibration data stored in the sensor, guarantees high repeatability with low operating costs
- Compact construction
- LED display for relay setpoint
- short-cycle operation
- Meets NRTL, ETL, RoHs and WEEE standards
Typical applications
- General vacuum measurements and vacuum control from low pressures to the high vacuum range
- Pre-vacuum pressure measurement
- Safety circuits in vacuum systems
- Lock pressure control
- Control of a high vacuum ionization vacuum meter
