      Skip to product information
      1 / of 4

      Leybold

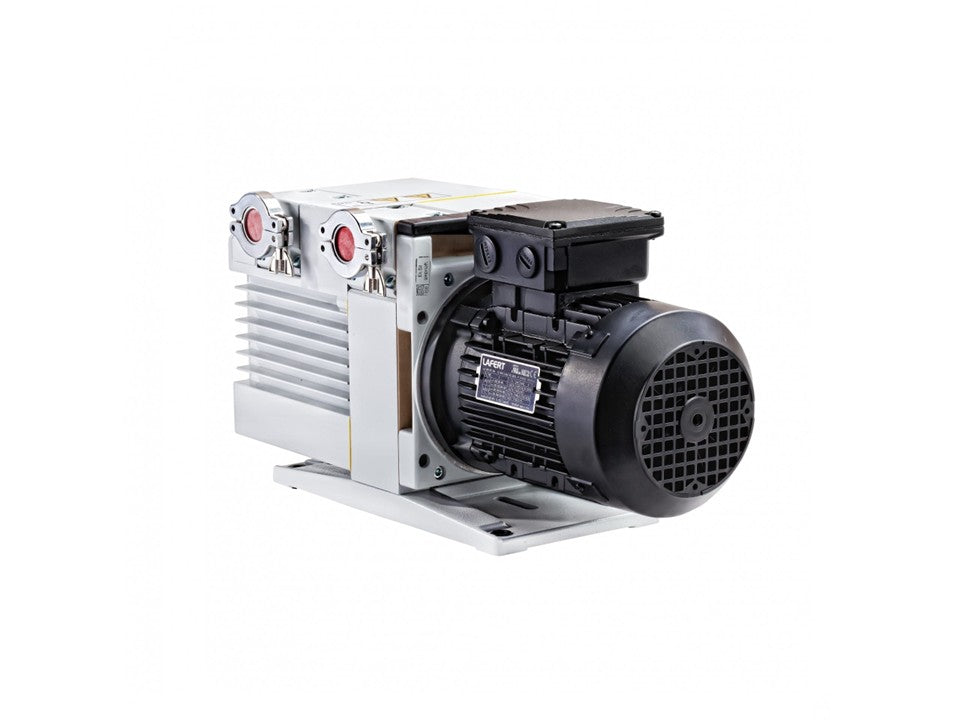

      Leybold TRIVAC D16B

      Leybold TRIVAC D16B

      Do you have questions?

      • Did you find a better price?
      • Questions about delivery?
      • Adaptation for your process as needed?

      Feel free to contact us!

      View full details
      Leybold TRIVAC D16B Leybold TRIVAC D16B Leybold TRIVAC D16B Leybold TRIVAC D16B
      • Description
      • Documents
      • Necessary accessories
      • Optional accessories
      • Oils / Operating materials
      • Spare Parts
      • Service

      Leybold TRIVAC B – Versatile Two-Stage Oil-Sealed Rotary Vane Vacuum Pumps

      The Leybold TRIVAC B series is a proven solution for a wide range of vacuum applications, from industrial production to research. It offers exceptional performance, efficiency, and flexibility.

      • Two-Stage Design: Suitable for rough and medium vacuum or as a backing pump for high-vacuum systems.
      • Efficient Vacuum Performance: Achieves ultimate pressure up to 10⁻⁴ mbar with high water vapor tolerance.
      • Quiet and Low-Vibration: Reduces noise and vibrations in the workspace.
      • Durable and Portable: Air-cooled design with low heat output, perfect for compact installations.
      • Versatile Options: Six sizes with pumping speeds ranging from 4 to 65 m³/h, with extensive accessories available.
      • Integrated Gas Ballast: Handles vapors and gases efficiently without performance loss.

      Typical Applications: Industrial production, research, vacuum distillation, coating, drying, and backing for high-vacuum applications.

      Previous product Next product
      ``

      Invalid password
      Enter

      Legal

      • AGBs
      • Imprint
      • Data Protection
      • Contact
      © 2026, Druschke GmbH Vakuumservice Powered by Shopify
      • Choosing a selection results in a full page refresh.
      • Opens in a new window.
      Variant:
      Article number
      11265
      11266
      11333
      140160
      Product
      TRIVAC D16B - ATEX
      End pressure
      2.00 x 10⁻³ mbar2.00 x 10⁻³ mbar2.00 x 10⁻³ mbar2.00 x 10⁻³ mbar
      End pressure
      Pumping speed
      16.50 m³/h16.50 m³/h16.50 m³/h16.50 m³/h
      Pumping speed
      Connection flange
      Power supply
      1-ph, 230V, 50/60Hz 3-ph, 230/400V, 50/60Hz 3-ph, 230/400V, 50/60Hz1-ph, 230V, 50/60Hz
      Feature variant
      Connection flange (pressure side)
      Connection flange (suction side)
      Inlet flange
      Outlet flange
      Lubricants
      Valves
      Product details
      Cooling Method
