    Skip to product information
    1 / of 3

    Leybold

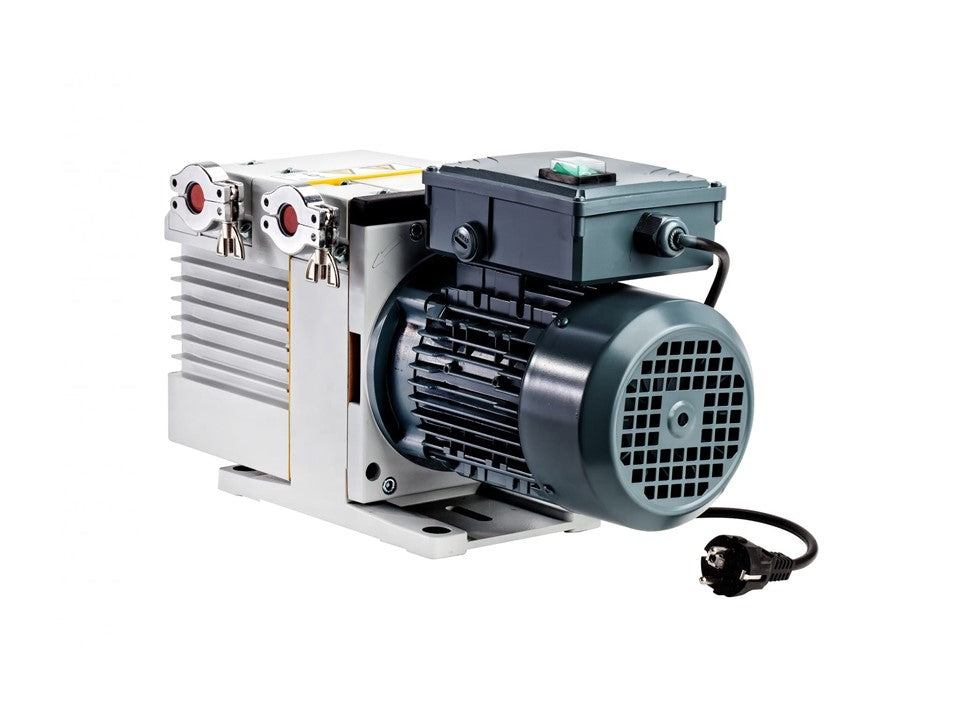

    Leybold TRIVAC D4B

    Leybold TRIVAC D4B

    Do you have questions?

    • Did you find a better price?
    • Questions about delivery?
    • Adaptation for your process as needed?

    Feel free to contact us!

    View full details
    Leybold TRIVAC D4B Leybold TRIVAC D4B Leybold TRIVAC D4B
    • Description
    • Documents
    • Necessary accessories
    • Optional accessories
    • Oils / Operating materials
    • Spare Parts
    • Service

    Leybold TRIVAC B – Versatile Two-Stage Oil-Sealed Rotary Vane Vacuum Pumps

    The Leybold TRIVAC B series is a proven solution for a wide range of vacuum applications, from industrial production to research. It offers exceptional performance, efficiency, and flexibility.

    • Two-Stage Design: Suitable for rough and medium vacuum or as a backing pump for high-vacuum systems.
    • Efficient Vacuum Performance: Achieves ultimate pressure up to 10⁻⁴ mbar with high water vapor tolerance.
    • Quiet and Low-Vibration: Reduces noise and vibrations in the workspace.
    • Durable and Portable: Air-cooled design with low heat output, perfect for compact installations.
    • Versatile Options: Six sizes with pumping speeds ranging from 4 to 65 m³/h, with extensive accessories available.
    • Integrated Gas Ballast: Handles vapors and gases efficiently without performance loss.

    Typical Applications: Industrial production, research, vacuum distillation, coating, drying, and backing for high-vacuum applications.

    • Leybold TRIVAC B Product Brochure - EN
    Invalid password
    Enter

    Legal

    • AGBs
    • Imprint
    • Data Protection
    • Contact
    © 2025, Druschke GmbH Vakuumservice Powered by Shopify
    • Choosing a selection results in a full page refresh.
    • Opens in a new window.
    Variant:
    Article number
    11245
    11246
    140081
    140140
    Product
    TRIVAC D4B - ATEX
    End pressure
    2.00 x 10⁻³ mbar2.00 x 10⁻³ mbar2.00 x 10⁻³ mbar2.00 x 10⁻³ mbar
    End pressure

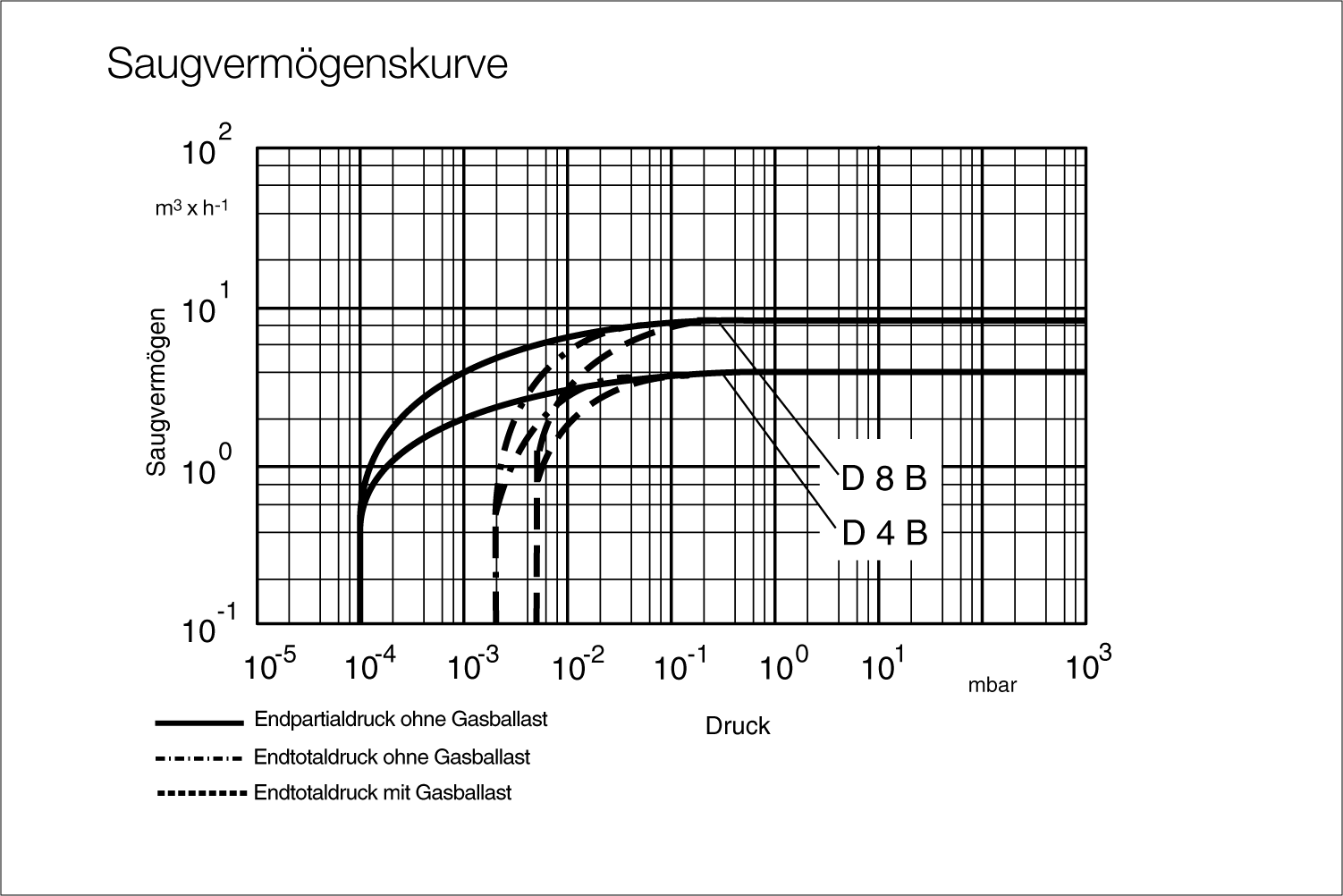

    Pumping speed
    4.20 m³/h4.20 m³/h4.20 m³/h4.20 m³/h
    Pumping speed
    Connection flange
    Power supply
    1-ph, 230V, 50/60Hz 3-ph, 230/400V, 50/60Hz 1-ph, 100/230V, 50/60Hz 3-ph, 230/400V, 50Hz
    Feature variant
    ATEX marking according to 2014/34/EU
    Connection flange (pressure side)
    Connection flange (suction side)
    Inlet flange
    Outlet flange
    Lubricants
    Valves
    Product details
    Cooling Method
