    Leybold

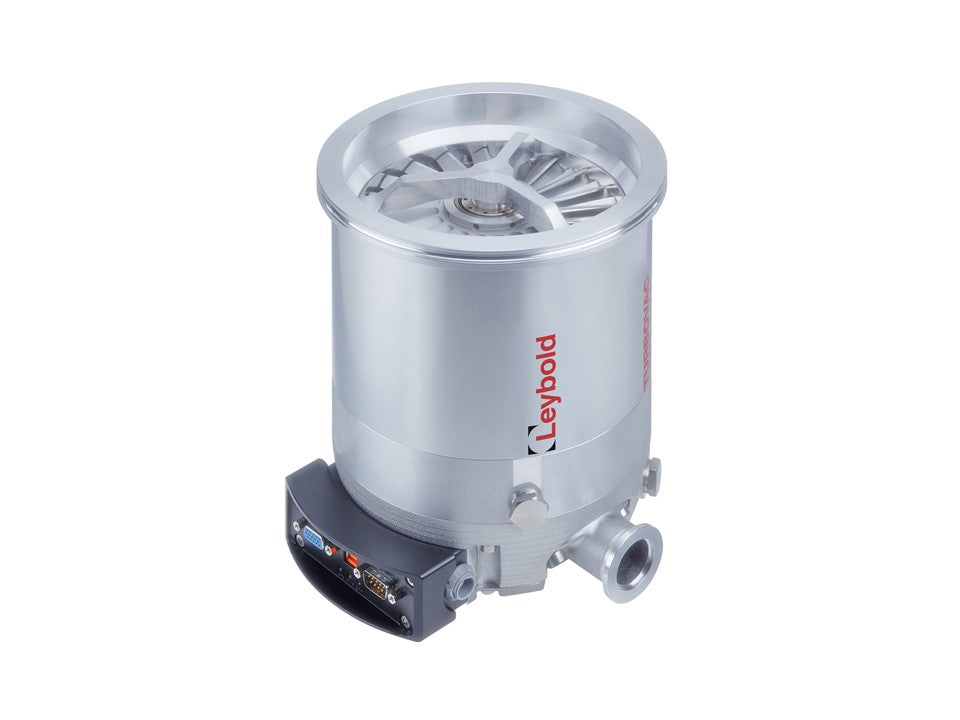

    Leybold TURBOVAC 450 i/iX

    Leybold TURBOVAC 450 i/iX

    Do you have questions?

    • Did you find a better price?
    • Questions about delivery?
    • Adaptation for your process as needed?

    Feel free to contact us!

    View full details
    Leybold TURBOVAC 450 i/iX Leybold TURBOVAC 450 i/iX Leybold TURBOVAC 450 i/iX
    • Description
    • Documents
    • Necessary accessories
    • Optional accessories
    • Oils / Operating materials
    • Spare Parts
    • Service

    Leybold TURBOVAC i/iX – High-Performance Turbomolecular Pumps for Advanced Vacuum Applications

    The TURBOVAC i/iX series combines innovative technology with modular design to deliver maximum pumping performance in a compact form. Perfect for industrial and scientific use.

    • Versatile Models: Pumping speeds ranging from 90 to 1,450 l/s for diverse needs.
    • Efficient Bearings: Hybrid rotor bearings with oil-free, lifetime-lubricated ceramic ball bearing and wear-free magnetic bearing.
    • Oil-Free Operation: Prevents contamination and reduces maintenance requirements.
    • Compact Design: Easy to integrate, suitable for demanding installations.
    • Cooling Options: Air or water cooling for added flexibility.
    • Advanced Features: Integrated interfaces such as RS485, USB, and digital I/O connections.
    • Enhanced Safety: Standard venting and purge gas ports.

    Typical Applications: Semiconductor technology, coating processes, analytics, research and development, and ultra-high vacuum applications.

    • Leybold Hochvakuumpumpen Katalog - DE
    Invalid password
    Enter

    Legal

    • AGBs
    • Imprint
    • Data Protection
    • Contact
    © 2025, Druschke GmbH Vakuumservice Powered by Shopify
    • Choosing a selection results in a full page refresh.
    • Opens in a new window.
    Variant:
    Article number
    830071V1000
    830081V1000
    830071V3300
    830081V3300
    Product
    End pressure
    ≤ 8.00 × 10⁻⁸ mbar≤ 5.00 x 10⁻¹⁰ mbar≤ 8.00 × 10⁻⁸ mbar≤ 5.00 x 10⁻¹⁰ mbar
    End pressure

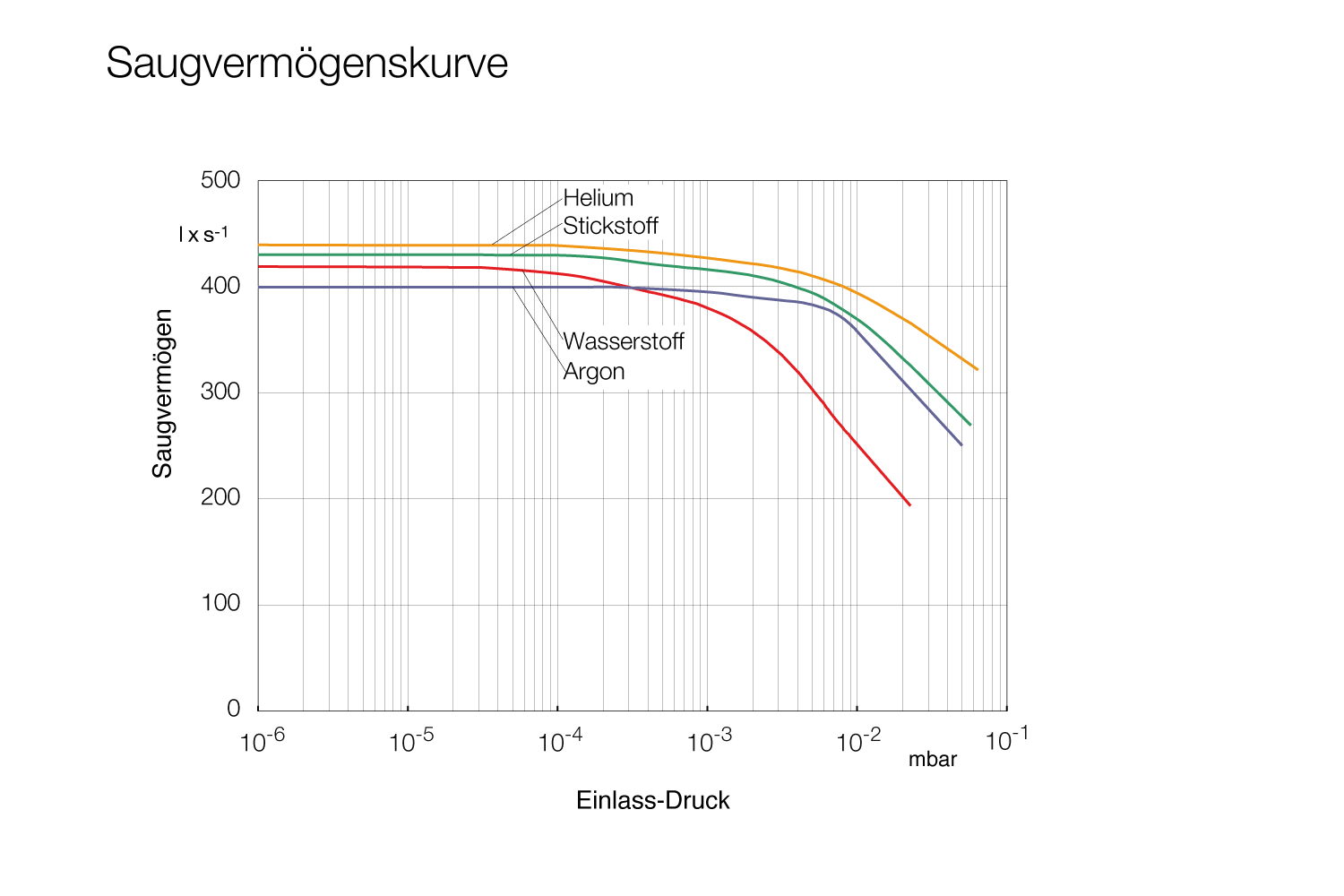

    Pumping speed
    430.00 l/s430.00 l/s430.00 l/s430.00 l/s
    Pumping speed
    Connection flange
    Power supply
    Feature variant
    Connection flange (pressure side)
    Connection flange (suction side)
    DN 160 ISO-KDN 160 CFDN 160 ISO-KDN 160 CF
    Inlet flange
    Outlet flange
    Lubricants
    Valves
    Product details
    Cooling Method
    TURBOVAC with integrated frequency converter, RS 485, USB+ and 15-pin digital I/O interfaceTURBOVAC with integrated frequency converter, RS 485, USB+ and 15-pin digital I/O interfaceTURBOVAC with integrated frequency converter and vacuum system control unit, RS 485, USB+ and 15-pin digital I/O interfaceTURBOVAC with integrated frequency converter and vacuum system control unit, RS 485, USB+ and 15-pin digital I/O interface
