      Leybold

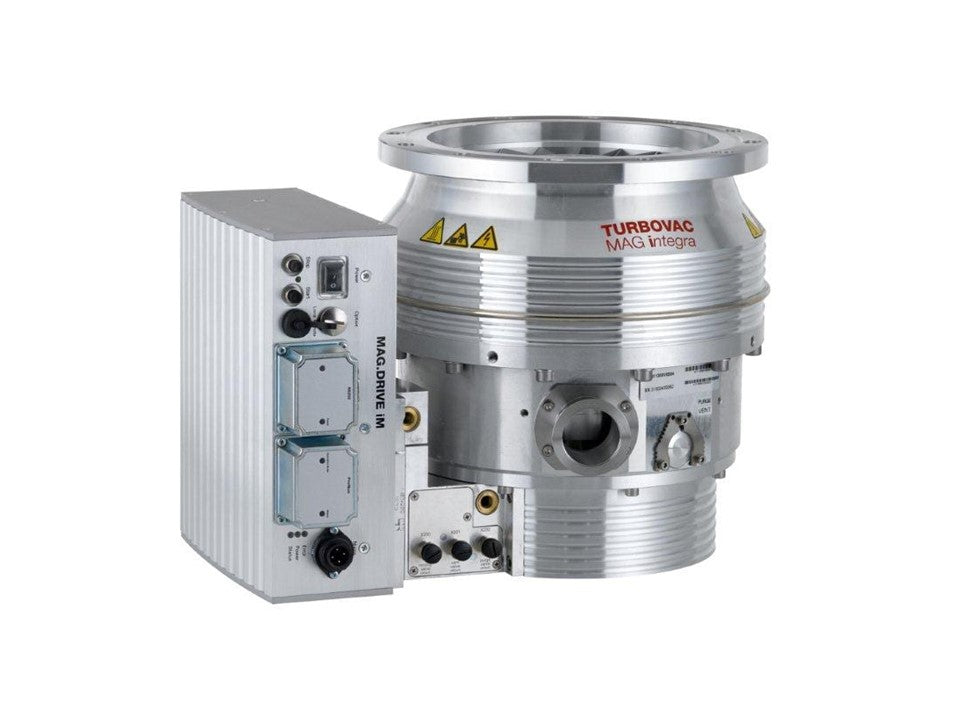

      Leybold TURBOVAC MAG W 1300 iP

      Leybold TURBOVAC MAG W 1300 iP

      Do you have questions?

      • Did you find a better price?
      • Questions about delivery?
      • Adaptation for your process as needed?

      Feel free to contact us!

      View full details
      Leybold TURBOVAC MAG W 1300 iP Leybold TURBOVAC MAG W 1300 iP Leybold TURBOVAC MAG W 1300 iP
      • Description
      • Documents
      • Necessary accessories
      • Optional accessories
      • Oils / Operating materials
      • Spare Parts
      • Service

      TURBOVAC MAG – Precise and High-Performance Turbomolecular Pumps for Advanced Vacuum Applications

      The TURBOVAC MAG pumps are the ideal solution for applications demanding high performance, low vibration, and long maintenance intervals.

      • Magnetic Bearings: Frictionless operation with fully magnetic rotor bearings.
      • Pressure Range: Designed for applications from 10⁻¹ to 10⁻¹⁰ mbar.
      • Pumping Speed: Options ranging from 300 l/s (inlet flange 100 mm) to 2000 l/s (inlet flange 250 mm).
      • Hydrocarbon-Free: No contamination from lubricants, making it ideal for sensitive processes.
      • Durable and Low-Maintenance: Long intervals between maintenance due to advanced technology.
      • Quiet Operation: Extremely low noise levels for a comfortable working environment.
      • Applications: Electron beam microscopy, analytics, research and development, and coating processes such as flat panel display and large-area coatings.
      • Leybold Hochvakuumpumpen Katalog - DE
      Previous product Next product
      ``

      Invalid password
      Enter

      Legal

      • AGBs
      • Imprint
      • Data Protection
      • Contact
      © 2026, Druschke GmbH Vakuumservice Powered by Shopify
      • Choosing a selection results in a full page refresh.
      • Opens in a new window.
      Variant:
      Article number
      411300V0506
      411300V0706
      411300V0716
      411300V0516
      411300V0514
      411300V0714
      411300V0704
      411300V0504
      Product
      End pressure
      1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar1.00 x 10⁻⁸ mbar
      End pressure

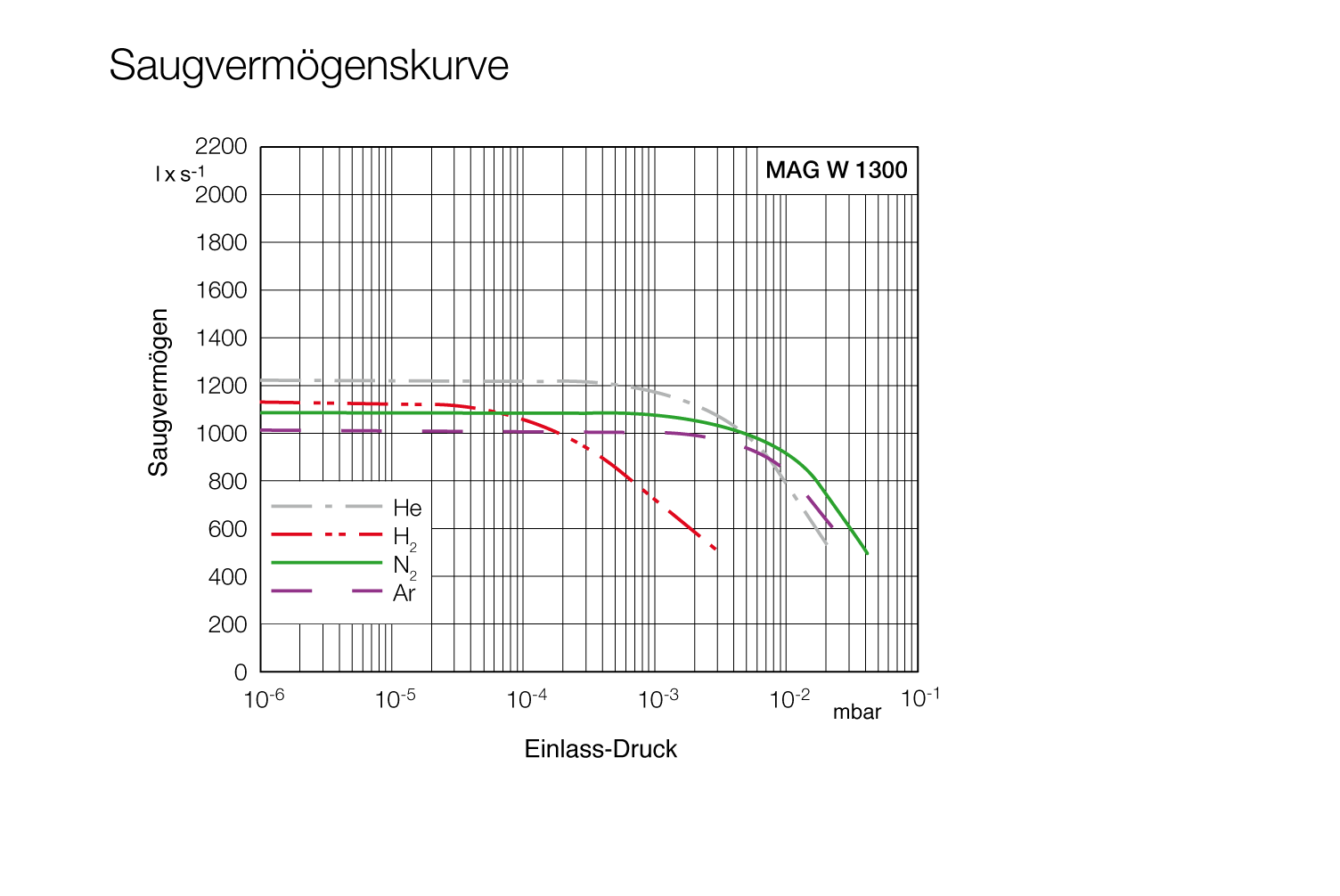

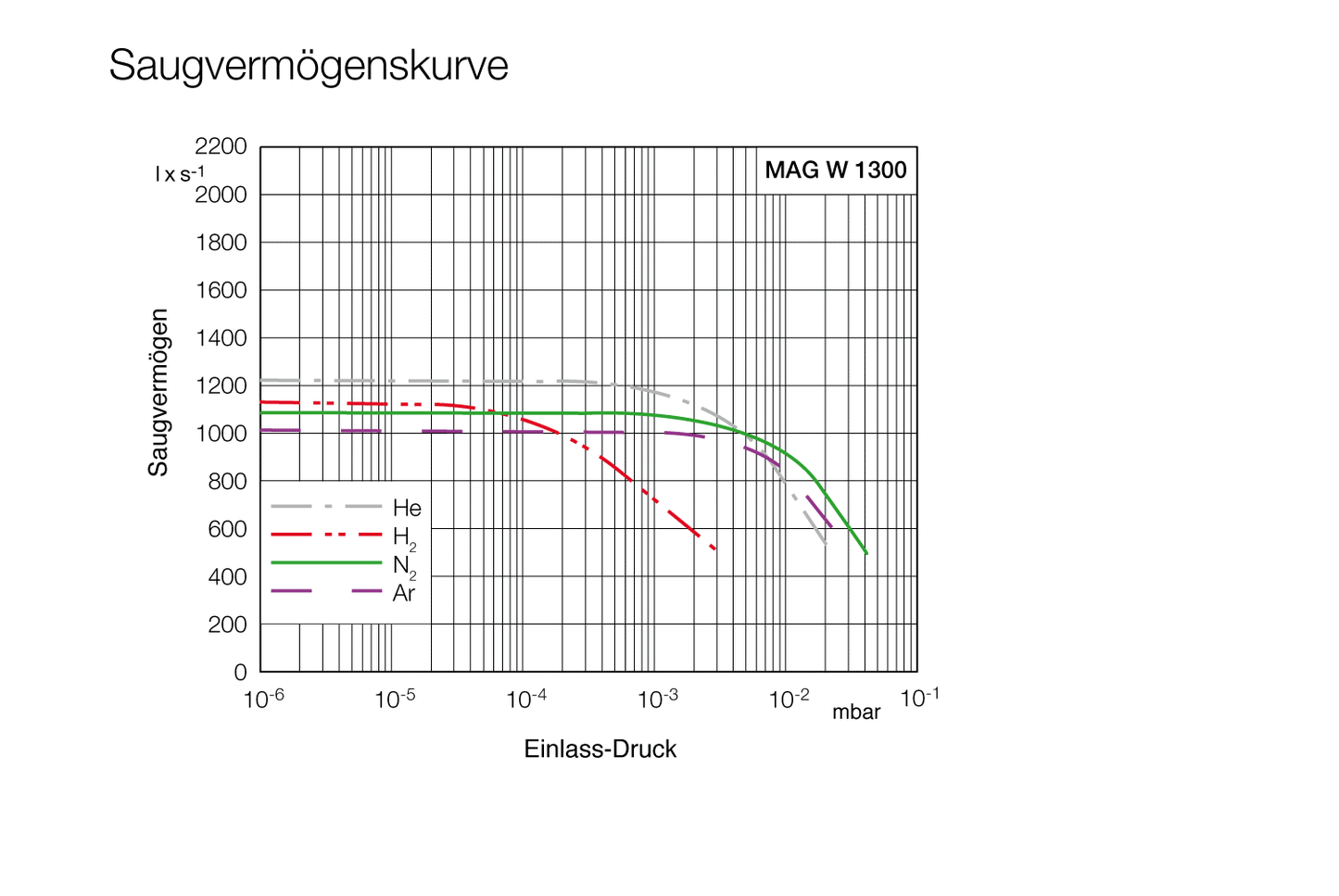

      Pumping speed
      1100.00 l/s1100.00 l/s1100.00 l/s1100.00 l/s1100.00 l/s1100.00 l/s1100.00 l/s1100.00 l/s
      Pumping speed
      Connection flange
      Power supply
      Feature variant
      Connection flange (pressure side)
      DN 40 ISO-KFDN 40 ISO-KFDN 40 ISO-KFDN 40 ISO-KFDN 40 ISO-KFDN 40 ISO-KFDN 40 ISO-KFDN 40 ISO-KF
      Connection flange (suction side)
      DN 200 CFDN 200 CFDN 200 CFDN 200 CFDN 200 ISO-FDN 200 ISO-FDN 200 ISO-FDN 200 ISO-F
      Inlet flange
      Outlet flange
      Lubricants
      Valves
      Product details
      Interface: Profibus
      Frequency converter location: Side
      Interface: Profibus
      Frequency converter location: Bottom
      Interface: PLC interface
      Frequency converter location: Bottom
      Interface: PLC interface
      Frequency converter location: Side
      Interface: PLC interface
      Frequency converter location: Side
      Interface: PLC interface
      Frequency converter location: Bottom
      Interface: Profibus
      Frequency converter location: Bottom
      Interface: Profibus
      Frequency converter location: Side
      Cooling Method
