Leybold

Leybold TRIVAC D 16 B

Artikelnummer:
Motor
Produkt anfragen

Bestpreisgarantie

Sie haben einen besseren Preis gefunden?

Nehmen Sie mit uns Kontakt auf!

Lieferinformationen

zzgl Lieferkosten - Sie bestimmen die Versandoption selbst.

Individuell wie Ihre Anforderung

Je nach Bedarf passen wir Ihr Produkt an Ihre Anforderungen an. Fragen Sie nach, wir beraten Sie gerne!



TRIVAC D 16 B

Two-stage rotary vane vacuum pumps

The TRIVAC B are oil-sealed vacuum pumps based on the rotary vane principle. The oil injected into the pump chamber is used for sealing, lubrication and cooling. The pump body is composed of individual parts without sealing elements. These are pinned to ensure easy disassembly and assembly.

Technische Daten

TRIVAC D 16 B

Enddruck: 2 x 10⁻³ mbar

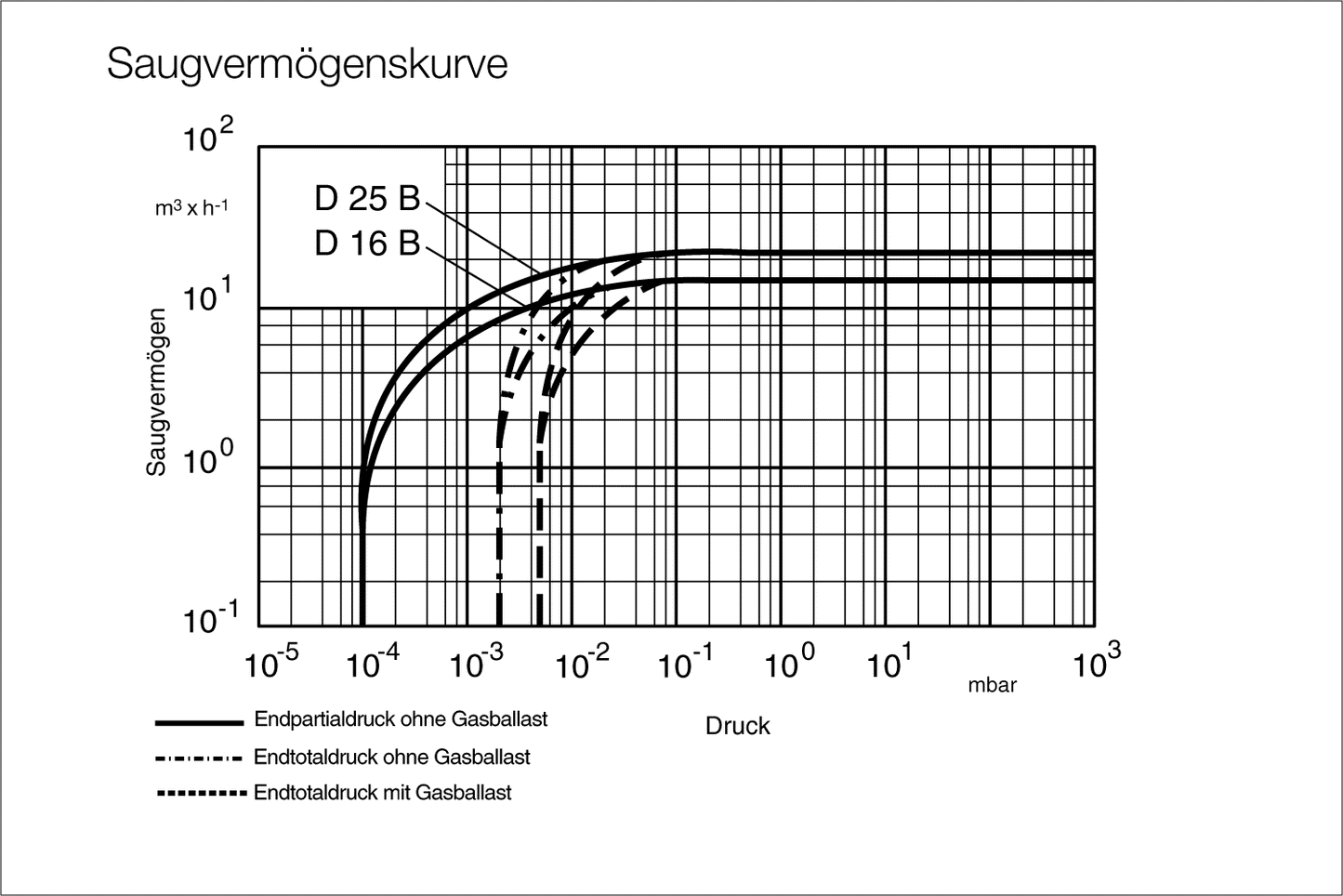

Saugvermögen (50 Hz): 16.5 m³/h
Saugvermögen (60 Hz): 19.8 m³/h

Downloads

Broschüre herunterladen
